JBT30.07.30S
Brief introduction
The perfect combination of mixing and pumping, it’s a one new equipment gathering function of lifting gravel material, mixing, and pumping, the whole process completed by an operator, significant saves in labor costs, at least saves 3-4 name labors for the construction, and efficiency can be increased 4-6 times;

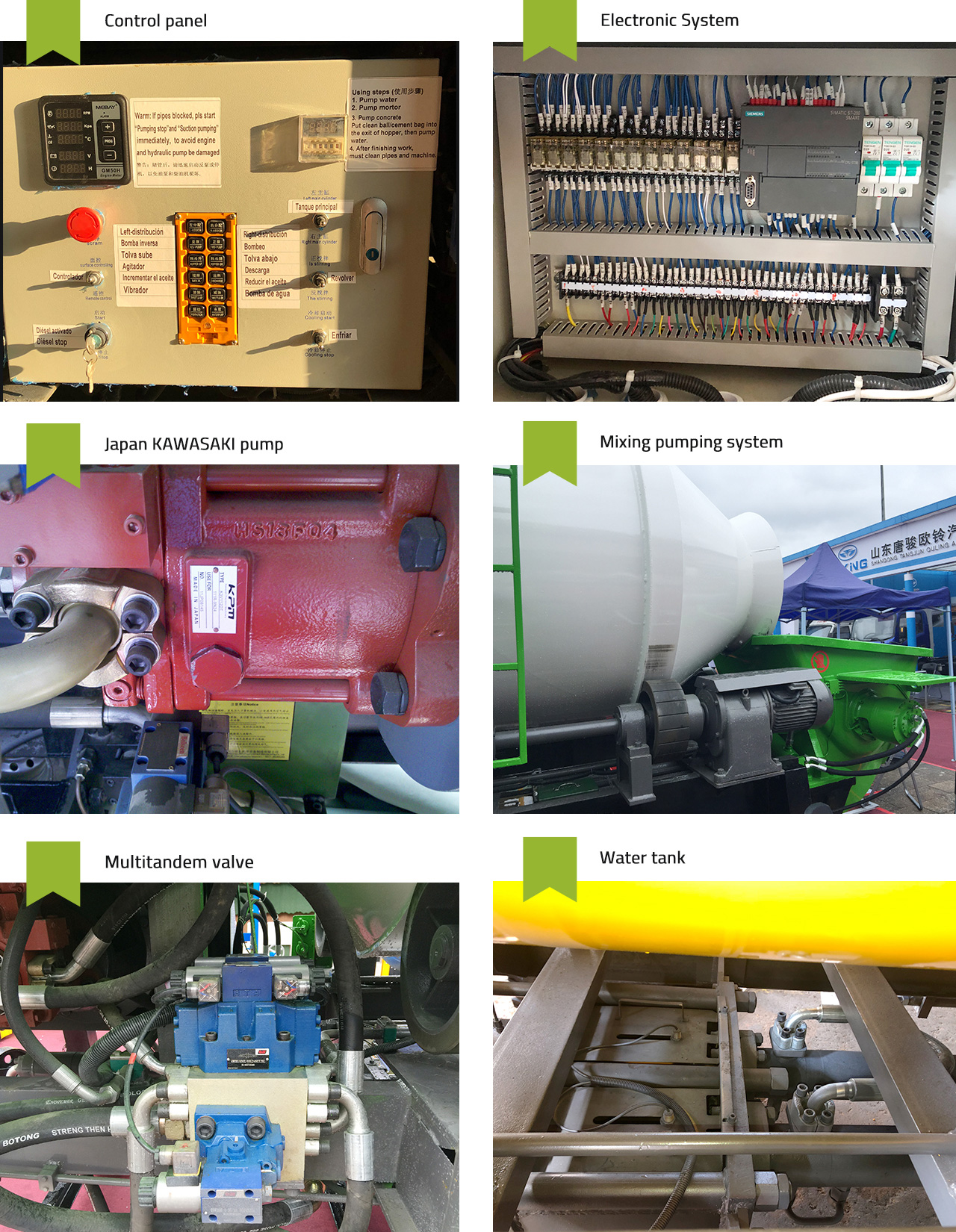

Feature
Parameter
  Parameter Name Unit JBT30.07.30S
Hydraulic system

Max. Theor.Concrete Output M³/h 30
Concrete Pumping Pressure Mpa 7
The form of Distribution valve   S pipe valve
Concrete Cylinder
Spec.(bore*stroke)
mm ¢200*1000
Hopper Capacity L 600
Diameter of Pump exit mm 180
Theor. Max. Delivery Distance (Vertical/ Horizontal)   60/200
Max.aggregate size mm Pebble≤ 20mm; Gravel≤ 35mm
Hydraulic oil tank capacity L 170
Pump model   Kawasaki
   Power system Pumping motor Kw 30
Voltage V/Hz 380/50
Hydraulic Circuit Form   Opened-circuit
Mixing System Mixer model   JZC350
Max.mix capacity M3/h 15
Winch motor power Kw 4.5
Mixing motor power Kw 5.5
Water pump motor power率 Kw 0.55
Overall performance Overall Dimension(L*W*H)) mm 4450*2100*3200
Total Weight Kg 3500

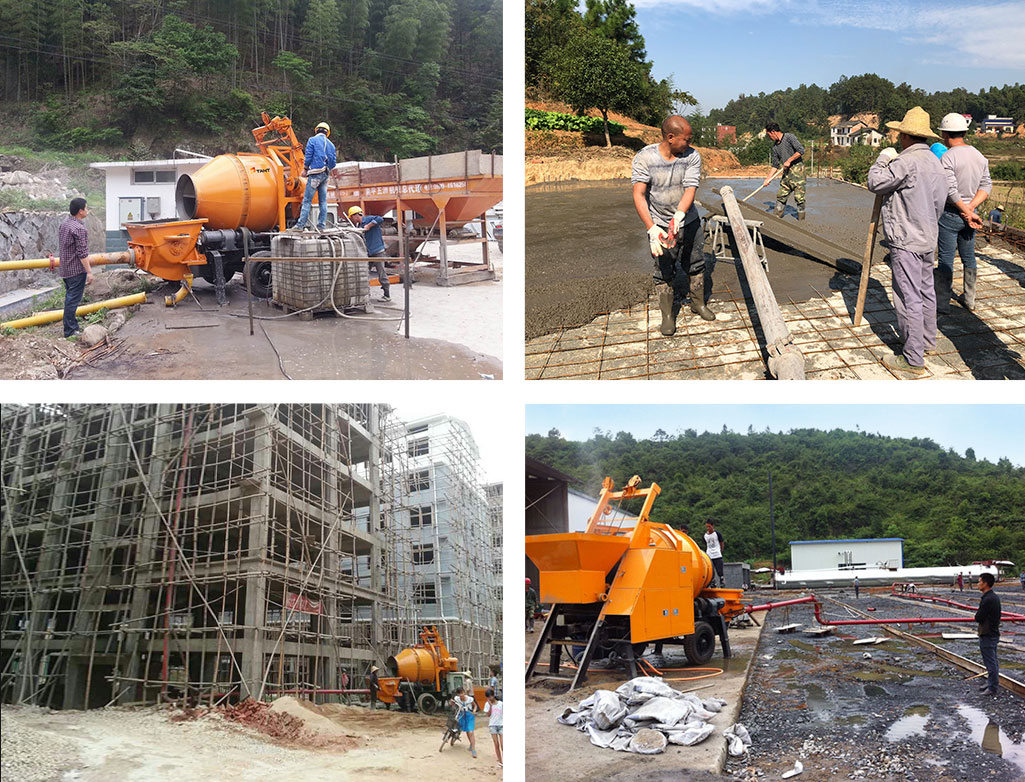

Construction case
