Construction hoist
Brief introduction

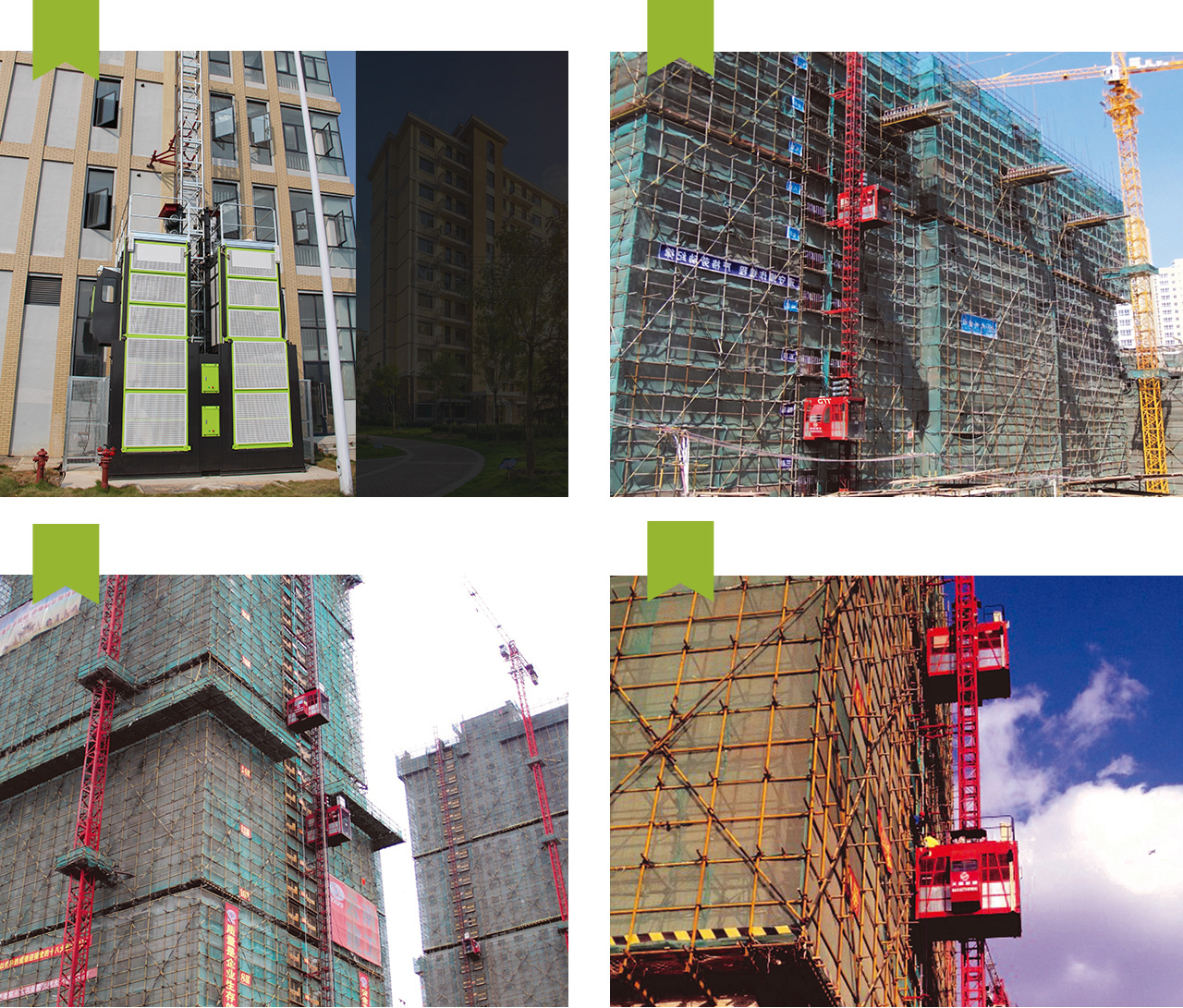

The construction elevator produced by Hunan Tant heavy industry is usually called construction elevator, but the definition of construction elevator is broader, and the construction platform also belongs to the construction elevator series. The simple construction elevator is composed of car, driving mechanism, standard section, attached wall, chassis, fence, electrical system and other parts. It is a manned and cargo construction machinery often used in buildings. Due to its unique box structure, it is comfortable and safe to ride. The construction elevator is usually used with tower crane on the construction site, with a general load capacity of 1-3 tons, The operating speed is 1-60m / min.
Feature
Parameter
  Model Rated lifting capacity (Kgs) Motor (Kw) Anti-falling safety device model Speed
(m/min)
Frequency converter capacity (Kw)
Low-speed construction hoist series
Single cage SC200 2000 2×15 SAJ40-1.2 0-33 /
SC200 2000 3×11 SAJ40-1.2 0-33 /
Double cage SC200/200 2×2000 2×2×15 SAJ40-1.2 0-33 /
SC200/200 2×2000 2×3×11 SAJ40-1.2 0-33 /
Low-speed frequency conversion construction elevator series
Double cage SC200/200B 2×2000 2×2×15 SAJ40-1.2  0-40 2×37
SC200/200B 2×2000 2×3×11 SAJ40-1.2 0-40 2×37
Middle-speed frequency conversion construction elevator series

Double cage
SC200/200BZ 2×2000 2×2×15 SAJ50-1.4 0-63   2×55
SC200/200BZ 2×2000 2×3×11 SAJ50-1.4 0-63   2×55
SC200/200BZ 2×2000 2×3×18.5 SAJ50-1.4 0-63   2×55
