Tower crane
Brief introduction

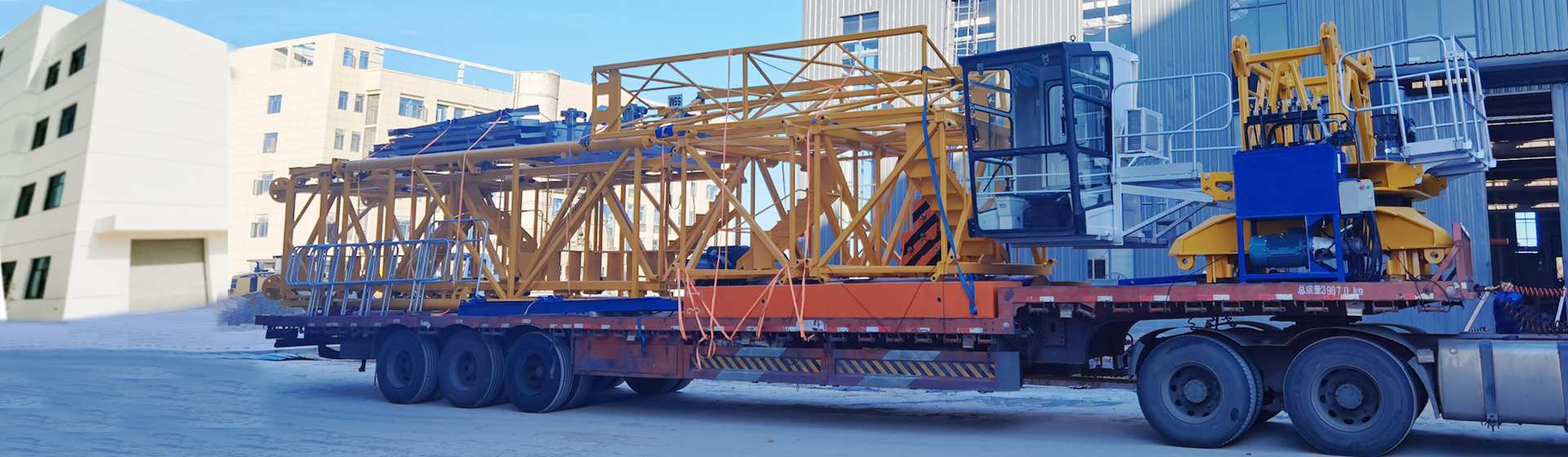

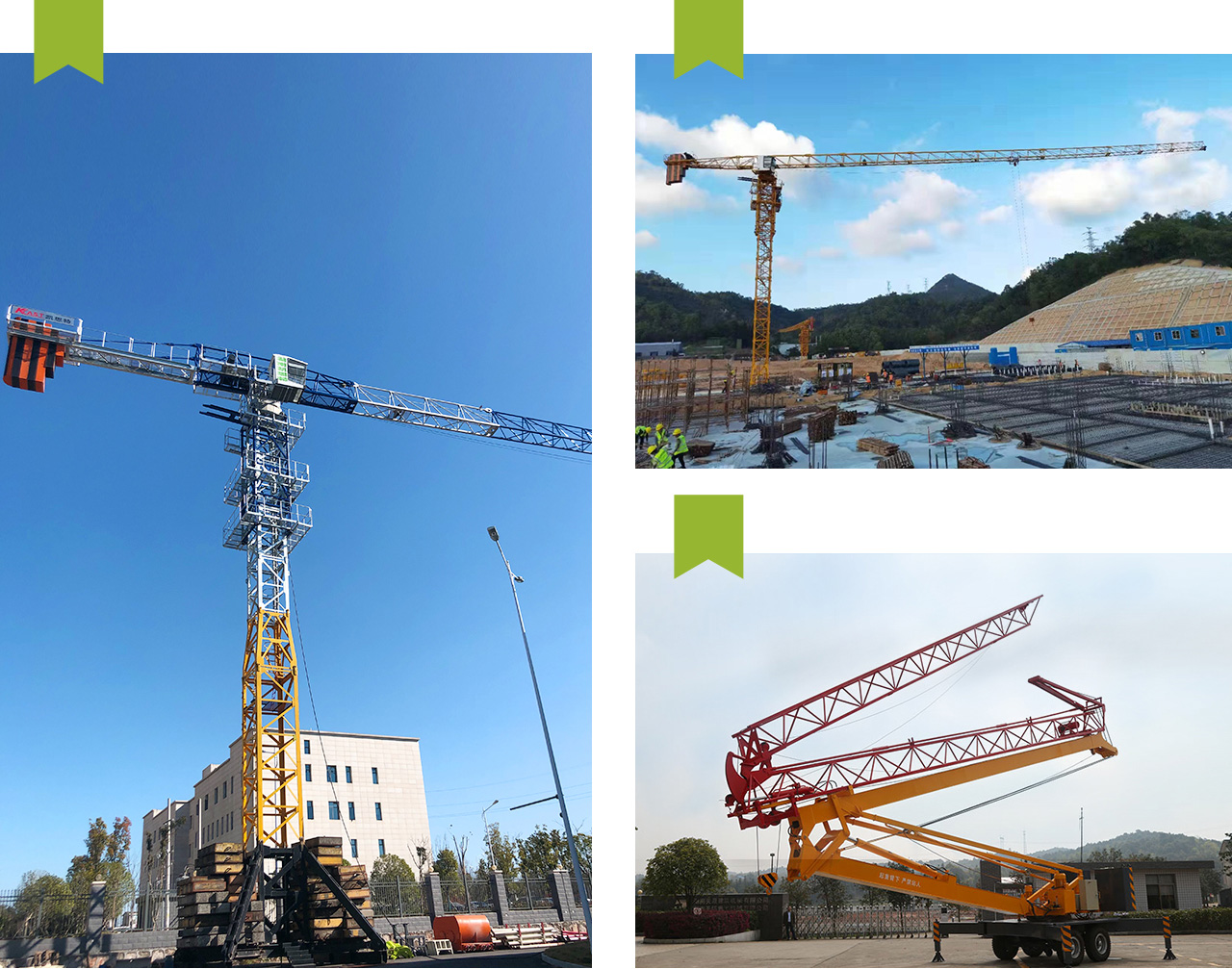

The mobile folding tower crane produced by Hunan Tant Heavy Industry Co., Ltd. is very suitable for hoisting and transportation of residential areas, villas, small towns, old house reconstruction, factories, urban viaducts, garden nurseries, small fishery terminals, small waste parking lots, etc. with 7 floors and below, the construction efficiency will be greatly improved, and the construction personnel and construction cost can be reduced.
Feature
Parameter
Item Unit parameter
lifting weight Kg 1500 1300 1140 1030 940 860
range m 2.3~9 11 12 13 14 15
lifting weight kg 790 740 690 640 600 500
range m 16 17 18 19 20 21
maximum lifting Kg                     1500 9m
rated maximum lifting torque Tm 13
lifting height m 15.5
maximum lifting height m 22
maximum operating range

m 21
Minimum operating range m 2.3
Trolley traction speed m/min 18
slewing speed without load r/min 0~0.5
maximum lifting speed m/min 15
radius of gyration m 2.5
outrigger span m 4*4
lifting motor power kw 5.5
rotary motor power kw 1.5
traction motor power kw 1.5
