HBT50.10.85RS
Brief introduction
The diesel concrete pump produced by Hunan Tant Heavy Industry is a special equipment for high-quality commercial concrete pumping construction with diesel engine as its own power, suitable for high-rise buildings, highways, water conservancy, bridges and freight yards and other construction facilities. Integrating mechanical, electrical and hydraulic technologies, it is suitable for concrete pumping operations in environments where there is no power or power. The key hydraulic components in this pump are hydraulic pump and hydraulic valve. The optimized design of S-pipe valve makes concrete pumping smoother. It has the remarkable characteristics of reliable performance, stable transportation, and strong pumping capacity. It can pump high-grade concrete stably for a long time in harsh environments. It is a modern construction equipment necessary for construction units and commercial concrete manufacturers.
Feature
Parameter
  Parameter Name Unit HBT50.10.85RS
Overall performance Max. Theor.Concrete Output M³/h 50
Concrete Pumping Pressure Mpa 10
The form of Distribution valve   S pipe valve
Concrete Cylinder
Spec.(bore*stroke)
mm ¢200*800
Hopper Capacity L 700
Diameter of Concrete line mm 125
Hopper Height mm 1200
Theor. Max. Delivery Distance (Vertical/ Horizontal)   140/450
Max.aggregate size mm 40
Power
system
The Model of Diesel Engine   Weichai
Engine Power Kw 85
Rated Speed r/min 2200
Hydraulic Circuit Form   Opened-circuit
Hydraulic System Main oil pump ml/r 140
Pump model   Chuanqi in Korea
Overall Dimension(L*W*H)) mm 4500*1850*1750
Total Weight Kg 4200

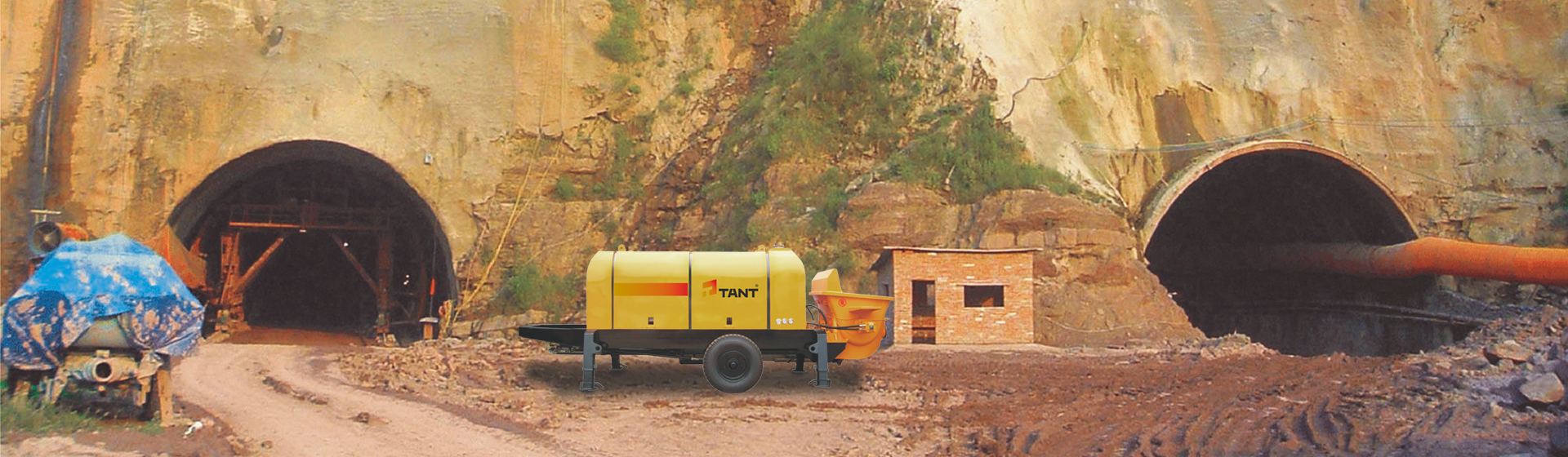

Construction case
