HBTS60.16.110E
Brief introduction
The electric concrete pump produced by Hunan Tant heavy industry is composed of pump body and delivery pipe. It is a kind of machinery that uses pressure to continuously transport concrete along the pipeline. It is mainly used in housing construction, bridge and tunnel construction.

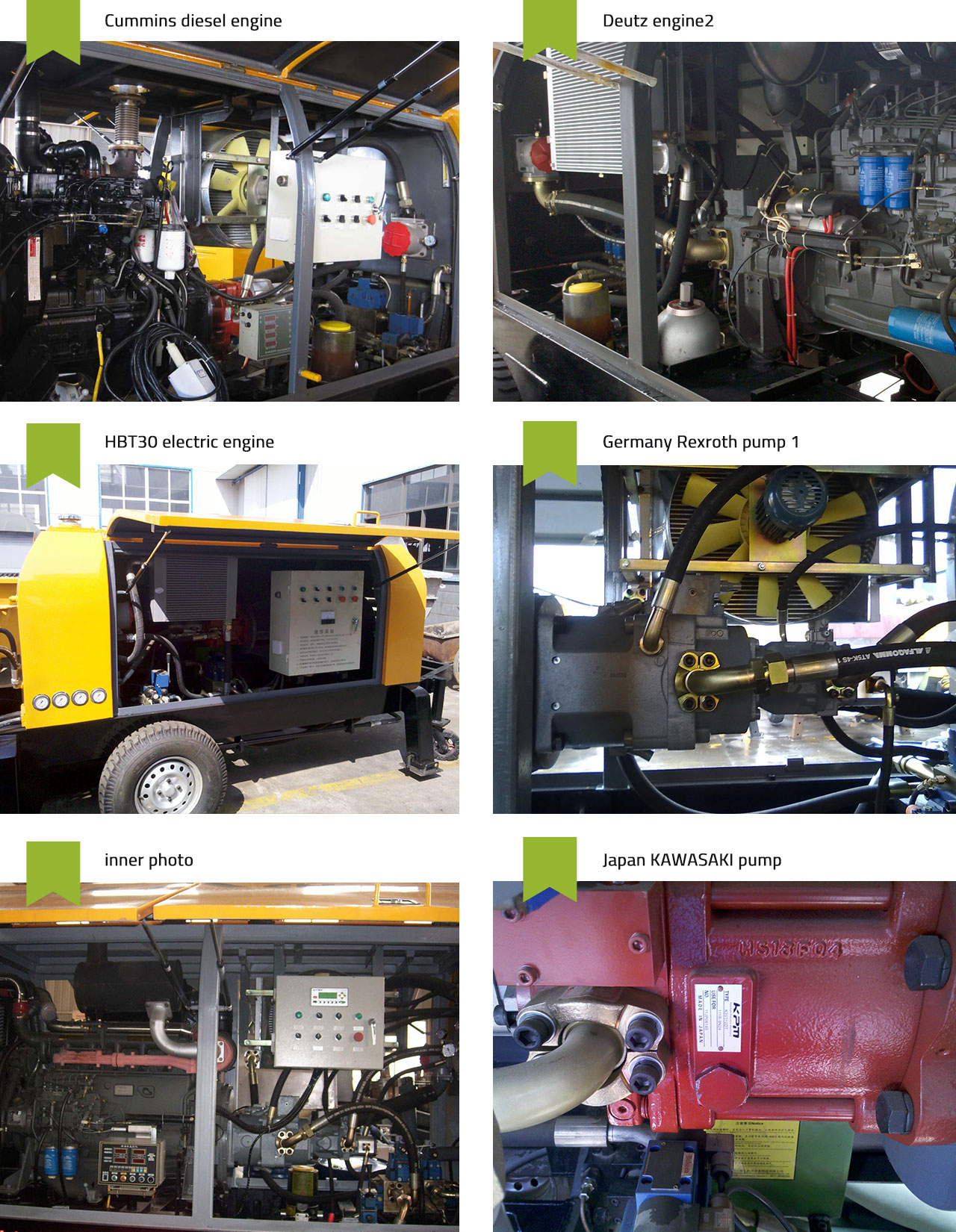

Feature
Parameter
Model HBTS60-16-110E
Main pump: Rexroth pump 260
Model:A11VLO260LDR
Max. Theor.Concrete Output: 60 M³/h
Concrete Pumping Pressure: 16 Mpa
Hydraulic system: opened type
Concrete Cylinder Spec.(bore*stroke): Ф200*1600 mm
Hopper Capacity: 0.7m3
Diameter of Pump exit 180mm
Hopper height: 1400mm
Theor.Max.Delivery Distance(Vertical/Horizontal) : 200 /1000 m
Electromotor power: 110Kw
Electromotor Model Y350M-4
Rated Rotate Speed: 1480r/min
Hydraulic Circuit form Opened-circuit
Hydraulic oil tank capacity: 580 L
Fuel tank capacity: 250L
Concrete slump: 120-230 mm
Overall dimension(LxWXH): 6300X2100X2250mm
Total weight: 6000Kg

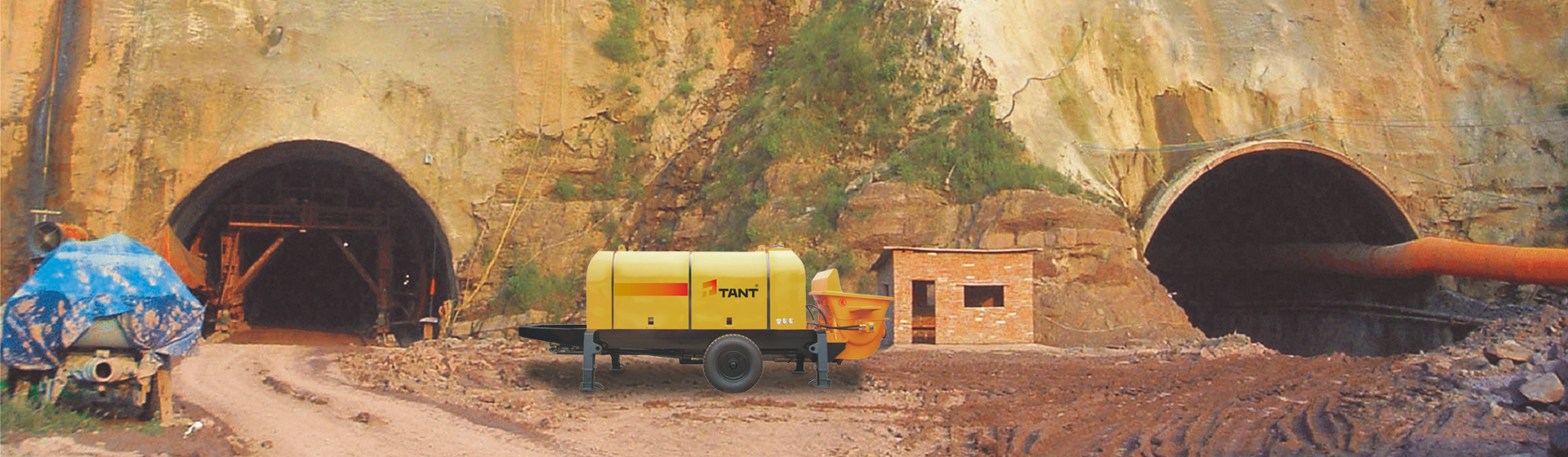

Construction case
