37m truck boom pump with mixer
Brief introduction
The 37m truck concrete pump with mixer produced by Hunan Tant Heavy Industry Co., Ltd. is an integration of 37m concrete pump truck and 500 forced mixer, which is suitable for the pumping demand of 3-10 storey buildings in towns and counties. The theoretical conveying capacity per hour is 50-80 cubic meters. It has its own mixing pump truck, which can be used for on-site mixing or commercial coagulation. Special vehicle chassis is adopted to facilitate driving on rural and mountainous roads. Hydraulic and electrical components of international well-known brands are selected for more reliable performance.

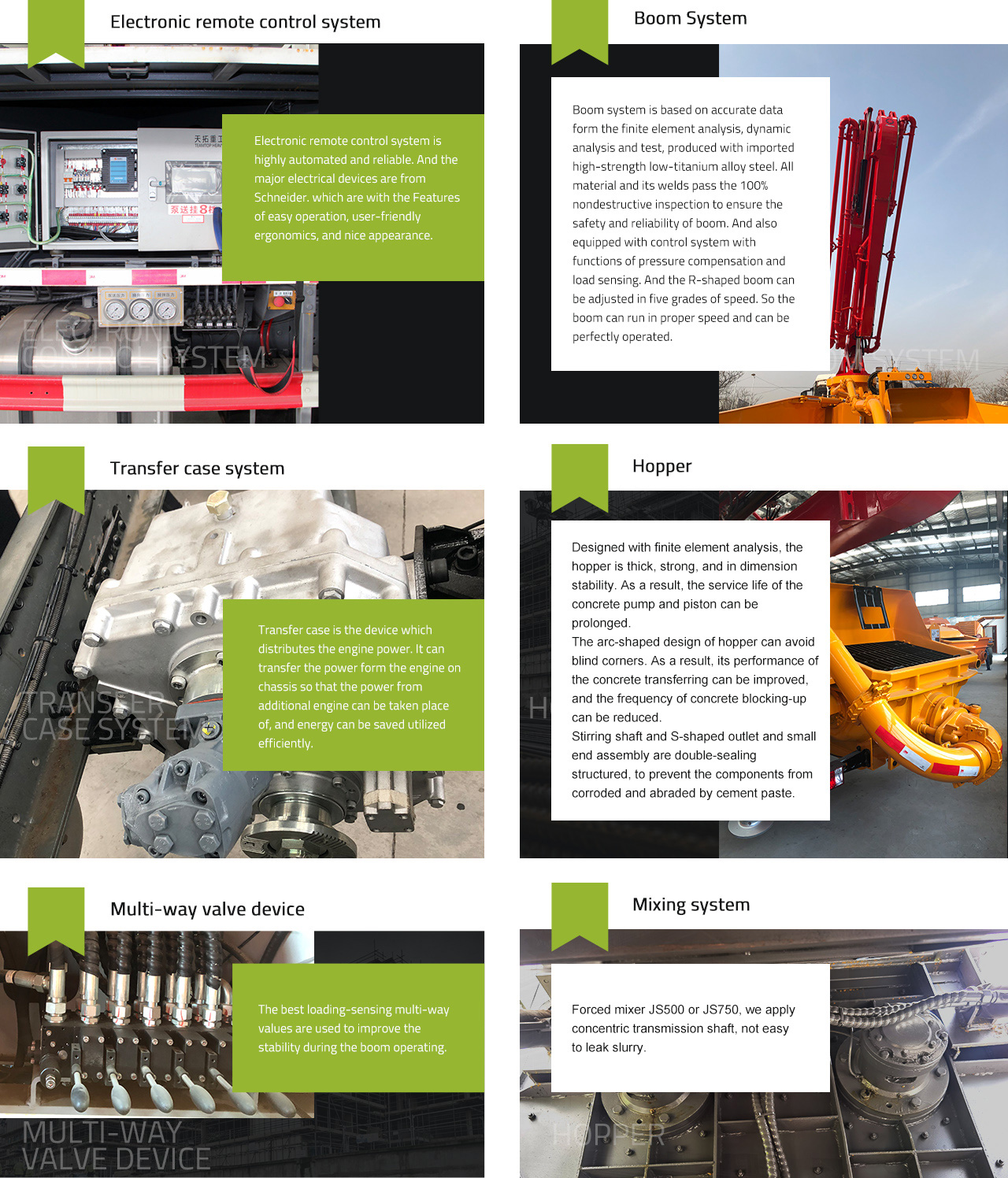

Feature
Parameter
  Model unit 37M
Overall parameter Overall Length mm 10400
Overall Width mm 2500
Overall Height mm 3650
Total Weigh kg 21800
Pumping system Thoery output capacity m³/h 80/120
Max Concrete Pressure Mpa 12/8
Theoretical pumping times min 23/28
Concrete Cylinder Bore/Stroke mm 260×1600
Hydraulic System type   Open Loop
Pumping System Pressure Mpa 32
Oil tank volume L 600
Truck chassis Chassis Model   ShanXi/HOWO
Wheel Bas mm 5200
Drive form   4×2
Max Speed Km/h 90
Boom system Boom type   5RZ Type
Max.vertical Reach mm
Max.horizontal Reach mm
Boom reach depth. mm
Mixing system Mixer model   JS500
Discharge capacity L 500
Feed capacity L 800
Theory mixing capacity m3/h 30

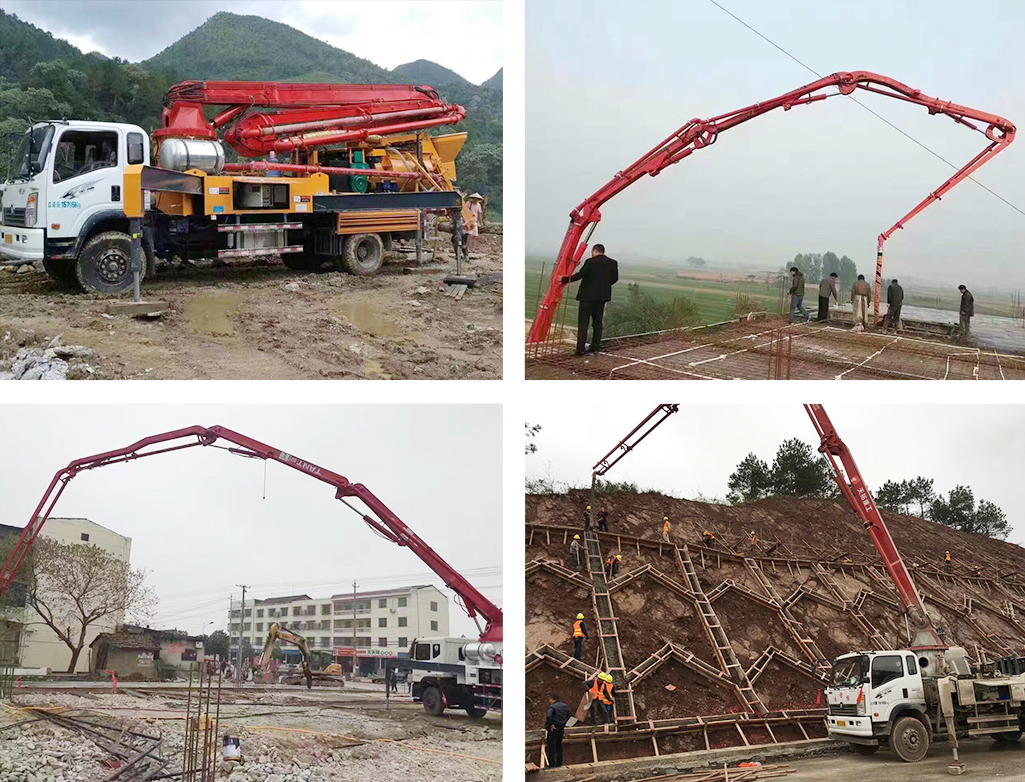

Construction case
