37m Truck boom pump
Brief introduction
The power of the 37m truck concrete boom pump of Hunan Tant Heavy Industry Co., Ltd. transmits the power of the engine to the hydraulic pump unit or rear axle through the power transfer box, and the hydraulic pump pushes the piston to drive the concrete pump to work. Then use the placing boom and conveying pipe on the pump truck to convey the concrete to a certain height and distance.
Feature

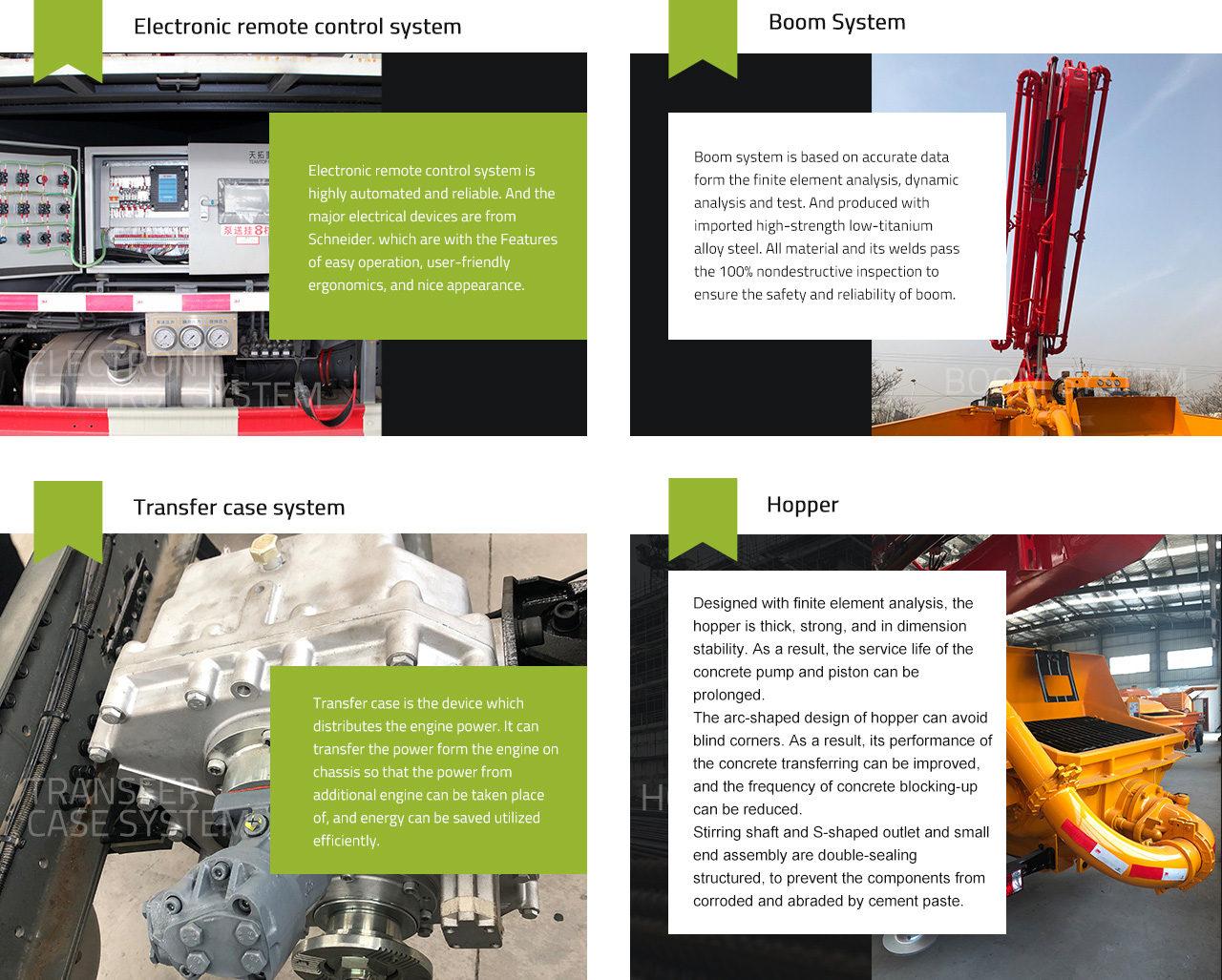

Parameter

37M TRUCK BOOM PUMP SEIRES OF MAIN TECHNICAL PAREMETERS
底盘型号Chassis Model Sinotruck Howo 6X4 drive T5G-M / A7
排放标准Emission Standard 国四 GB IV
发动机 Engine Brand MC07.31-40
轴距Wheel Bas 5200mm
最大行驶速度 Max Speed 90
整车接近/远离角Approach/Departure Angle 19/12
轮胎规格Tyre Size 12.00.R20-WJ (class 20)
臂架系统 BOOM SYSTEM
臂架最大垂直高度
Max.vertical Reach
35.816m
臂架水平布料半径
Max.horizontal Reach
32.166m
布料深度Reach depth. 24.316M
第一节臂长(mm)
Length of the first jib
7200mm
第二节臂长(mm)
Length of the second jib
6000mm
第三节臂长(mm)
Length of the third jib
5700mm
第四节臂长(mm)
Length of the fourth jib
6630mm
第五节臂长(mm)
Length of the fifth jib
6636mm
各节臂转动角度
Arm Section Articulation
90°/180°/180°/235°/220°
臂架控制模式
Boom Control Model
手动、无线遥控系统
manual and wireless remote control are all available
臂架折叠方式Boom Type RZ Type
转塔旋转角度Slewing Range ±270
前支腿横跨距离
Front Outriggers Spread
6250mm
后支腿横跨距离
Rear Outriggers spread
7250mm
前后支腿纵向距离(MM)
Distance of the back and forth leg
6780mm
支腿打开方式Open way of Legs X
尾胶管长度End Hose Length 3000mm
混凝土输送管直径(MM)Arm Attached Pipeline Diameter 125mm
电气控制系统ELECTRICAL CONTROL SYSTEM
控制电源Power Supply 底盘自带电源Chassis Power Supply
控制模块Control Module 进口Import
工作电压Working Voltage 24V
中间电器品牌
Relay

无线遥控器品牌
Wireless Remote Controller
迪比蒙/DBM
液压传动系统 HYDRAULIC SYSTEM
液压系统类型
Hydraulic System Type
开式液压系统
Open Loop
系统工作压力
System Working Pressure
32.0Mpa
主液压油泵品牌
Main Hydraulic Pump Brand
Rexroth
力乐士
主油泵型号
Main Hydraulic Pump Type
A11VL0190

主电液换向阀品牌 Main Electro-Hydraulic Valve Rexroth
力乐士
吸丶回油滤芯品牌
Oil Suction and Return Filter
黎明
Leemin
臂架多路阀品牌
Multi-Way Valve
上海诺玛
Shanghai Nuoma
臂架平衡阀品牌
Boom Counterbalance Valve
Rexroth
力乐士
臂架油泵品牌
Boom hydraulic pump
Rexroth
力乐士
支腿多路阀品牌
Multi-Way Valve
Youli
油力
安全阀品牌Relief Valve 进口Import
液压油箱容积
Hydraulic Oil Tank Capacity
600L
液压油冷却方式
Hydraulic Oil Cooling
风冷
Air Cooling
主油缸Main Oil cylinder Dia.230mm
分动箱品牌 transfer case brand 珠齿 Zhuzhou Gear
回转减速机品牌
Turret Reduce brand
上海布雷维尼
Shanghai Brevini
尺寸&重量 DIMENSIONS&WEIGHT
整车总长约(MM)
Overall Length
10400mm
整车总宽约(MM)
Overall Width
2500mm
整车总高约(MM)
Overall Height
3650mm
整车质量约(T)
Total Weigh
21000kg
泵送系统 PUMPING SYSTEM
混凝土理论排量
 Thoery output capacity
75/118m³/h
最大混凝土出口压力高压/低压
Max Concrete Pressure
10/6.5MPa
混凝土分配阀形式
Concrete Valve
S阀
S Valve
系统油压
Pumping system pressure
32Mpa
混凝土活塞品牌
Concrete Piston
MADE IN CHINA
国产
输送缸内径/行程Concrete Cylinder Bore/Stroke Φ260mm/160mm
水箱容积 water tank volume 230L
输送管径 Delivery pipe dia. 125mm
最大上料高度(mm)
Hopper Charge Height
≤1400m
料斗容积(m²)
Concrete Hopper Capacity
600L
可泵送混凝土塌落度
Concrete Slump
12~18cm
允许最大骨料尺寸(MM)
Max. aggregate dimension
40mm
润滑方式
Lubricating Mode
集中点对点润滑
Centralized and Automatic Lubrication

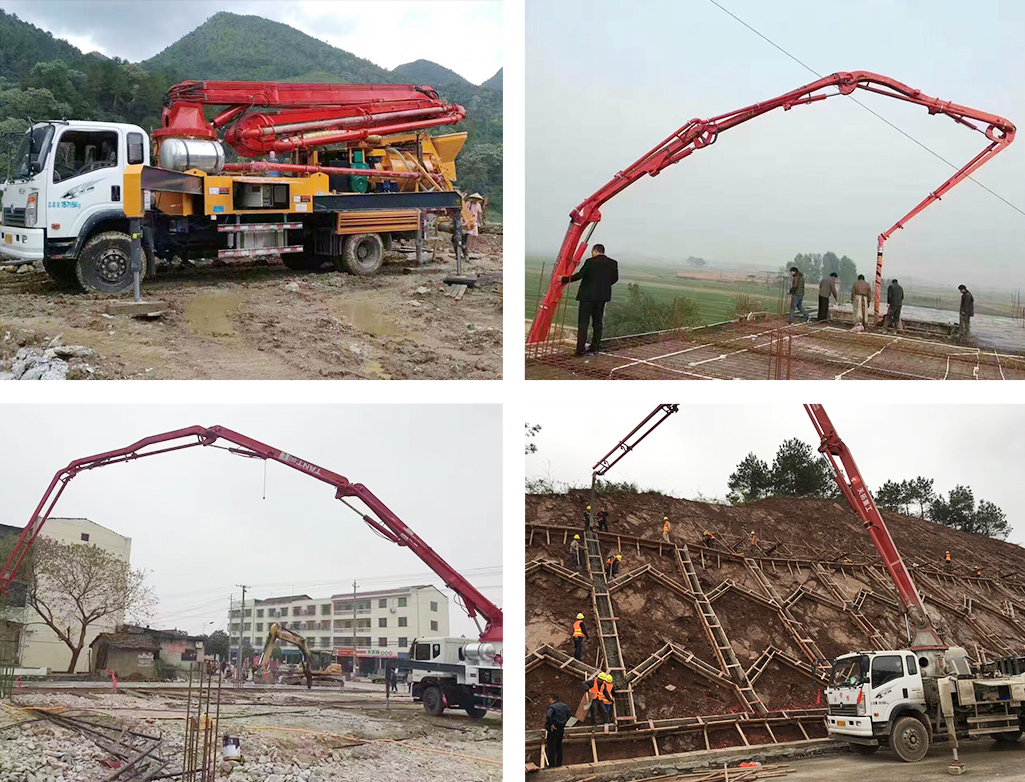

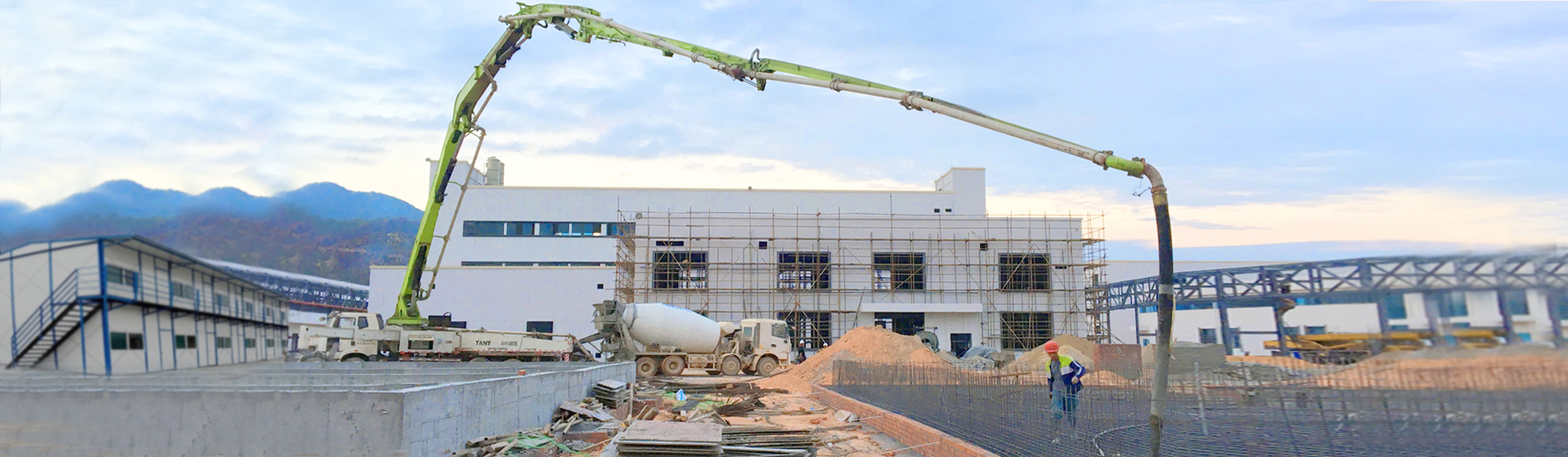

Construction case
