75m truck boom pump
Brief introduction
The 75m truck concrete boom pump of Hunan Tant Heavy Industry is a new type of 6-section boom truck concrete pump, which combines convenient maintenance, economy and energy saving, strong site adaptability, and high-efficiency construction. The six-section RZ boom is flexible and fast. The model outrigger occupies a small area, and the overall repair and maintenance efficiency is increased by 50%-70%
Feature
Parameter
型号(type) REACHSD5545THB-75
整车参数
(vehicle)
全长(Full length) 16720mm
总宽(Total width) 2550mm
总高(Total height) 4000mm
自重(Self weight) 54000kg
臂架支腿参数
(Boom leg parameters)
臂架垂直高度(Boom vertical height) 74.5m
臂架水平长度(Level of boom length) 68.9m
臂架垂直深度(Boom vertical depth) 56.1m
最小展开高度(Minimum a highly) 16.8m
第一节臂
(First arm)
长度(length) 13935mm
转角(corner) 90°
第二节臂
(Second arm)
长度(length) 10615mm
转角(corner) 180°
第三节臂
(Third arm)
长度(length) 10225mm
转角(corner) 180°
第四节臂
(Fourth arm)
长度(length) 13250mm
转角(corner) 230°
第五节臂
(Fifth arm)
长度(length) 13800mm
转角(corner) 180°
第六节臂
(Sixth arm)
长度(length) 8620mm
转角(corner) 210°
转台旋转角度(Turntable rotation Angle) ±270°
前支腿展开宽度(Before the leg width) 12745mm
后支腿展开宽度(After the leg width) 15800mm
泵送系统参数
(Pumping system parameters)
混凝土排量(Concrete delivery) 180m3/h
理论泵送压力
(pressure)
高压/低压 12/8.2Mpa
理论泵送次数(Theory of pumping) 28次/分钟
输送缸内径(Transporting cylinder diameter) 260mm
输送缸行程(Transporting cylinder stroke) 2200mm
液压系统(The hydraulic system) 开式液控Open type
系统油压(Oil pressure system) 32Mpa
油箱体积(Tank volume) 500L
水箱容积(The tank volume) 1000L
输送管径(Conveying pipe diameter) 125mm
末端软管长度(End hose length) 3m
末端软管管径(End hose digmeter) 125mm
底盘型号(Chassis models) SINOTRUK HOWO ZZ5547V42KGF1
底盘参数
(Chassis )
发动机型号
(Engine type)
MC13.54-61
发动机功率
(Engine power)
400kw
排放标准
(Emission standards)
EUR 6
排量
(Displacement)
2400Nm/(950-1400)rpm  12.540L

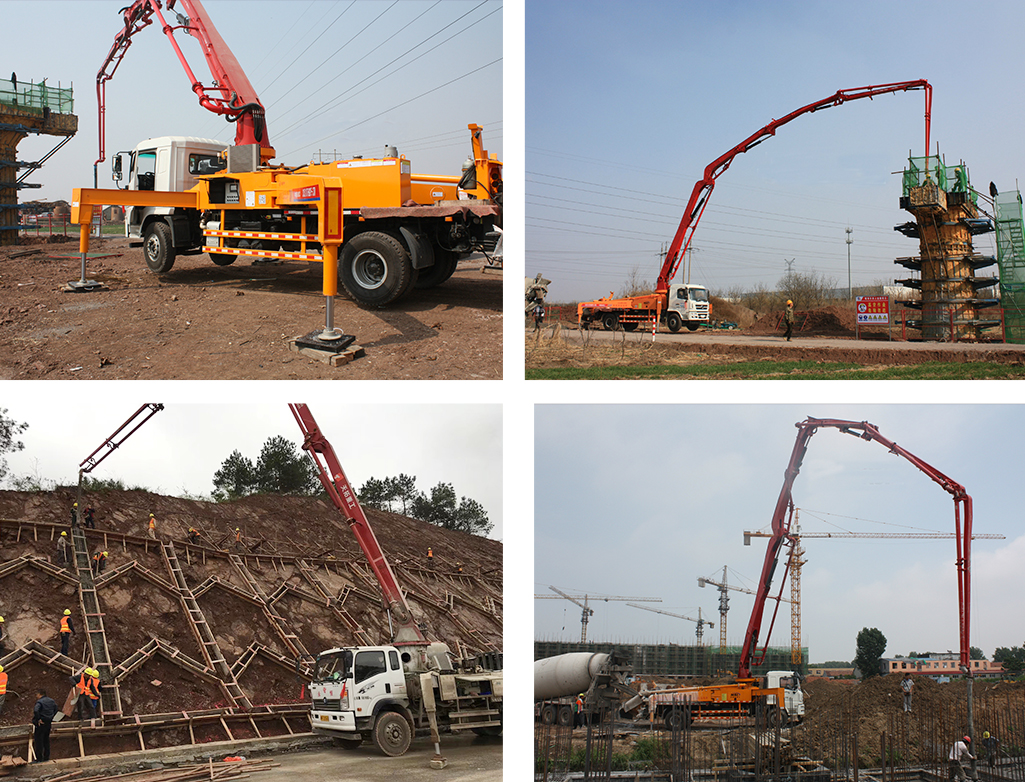

Construction case
