HBC60 truck-mounted concrete pump
Brief introduction
The truck-mounted concrete pump of Hunan Tant heavy industry integrates the advantages of trailer pump and automobile. It is more flexible and mobile than trailer pump, without transportation, loading and unloading, fixed installation, high equipment utilization, stronger pumpable performance and faster pumping speed; It occupies less space than the pump truck, has low price, high pumping height, long distance and low maintenance cost.

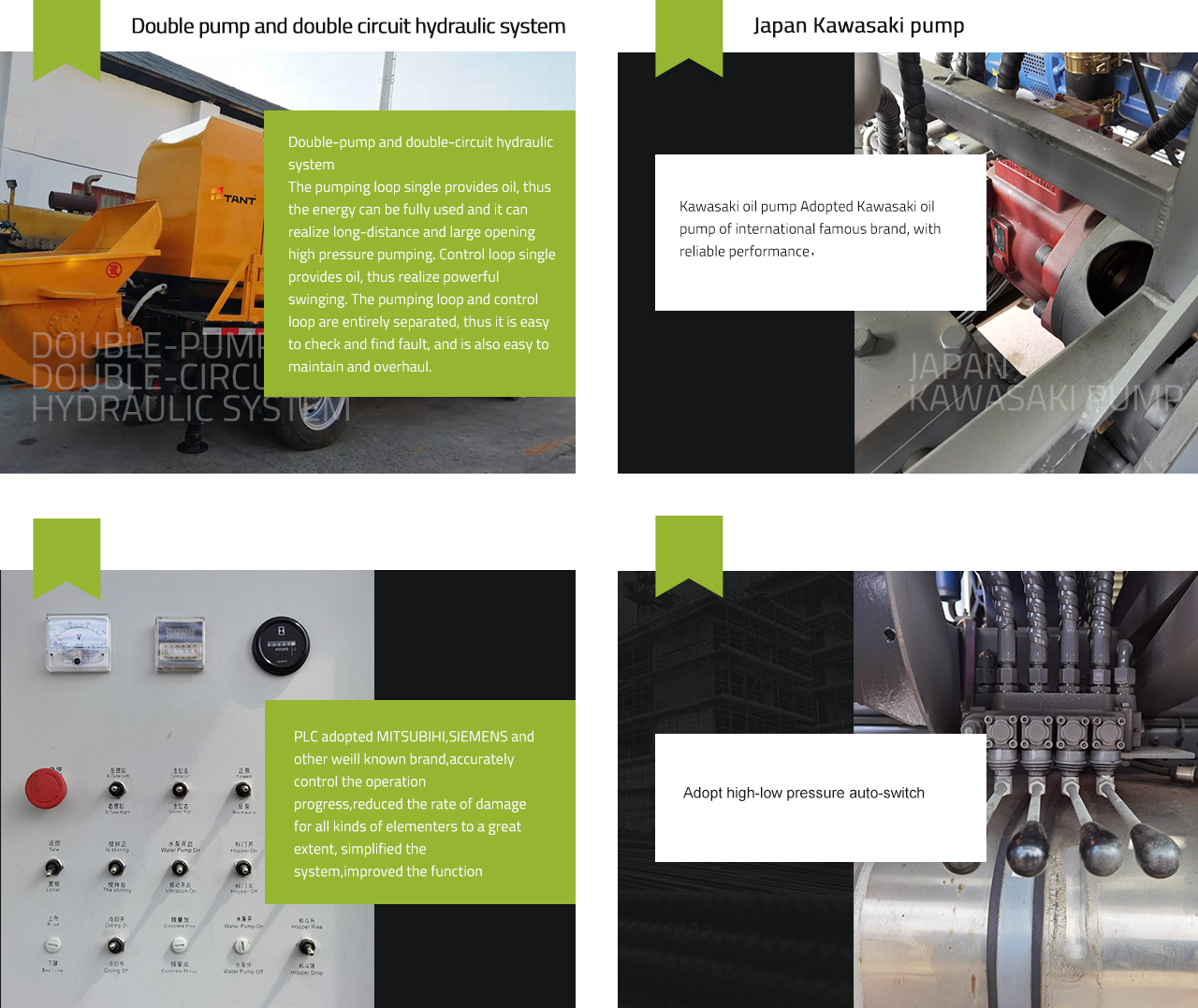

Feature
Parameter
Model   HBC60.13.130RS
  Weight 12000KGS
  Max.speed 90KM/H
Chassis system Chasis Model Dongfeng Tianjin
Fuel Diesel
Displacement/Power 5985ML/134KW
Tyre Size 9.00-20-16PR
Tyred distance(front and back) 1900MM/1800MM
Min.Change Radius 9M
Drive Method Hydraulic
Cool Method of Hydraulic Oil Mandatory Air Cooling
Engine model Perkins 180Ti
Displacement Standard GB3847/GB17691
Axis Distance 4700MM
Upper part Diesel Engine Brand/Model Weichai
Diesel Engine power 129RS
Fuel Tank diameter×stroke 125MM/1600MM
Delivery tank diameter×stroke 200MM/1600MM
System Oil Pressure 32MPA
High/Low Pressure Shift Manual
Thero.Pumping Pressure 13MPA
Thero Pumping speed 30/Min
Hydrualic pump: Rexroth 190 in Germany
Thero.Concrete Output 68m³/h
Overall size Length 8900MM
Height 2450MM
Width 3180MM

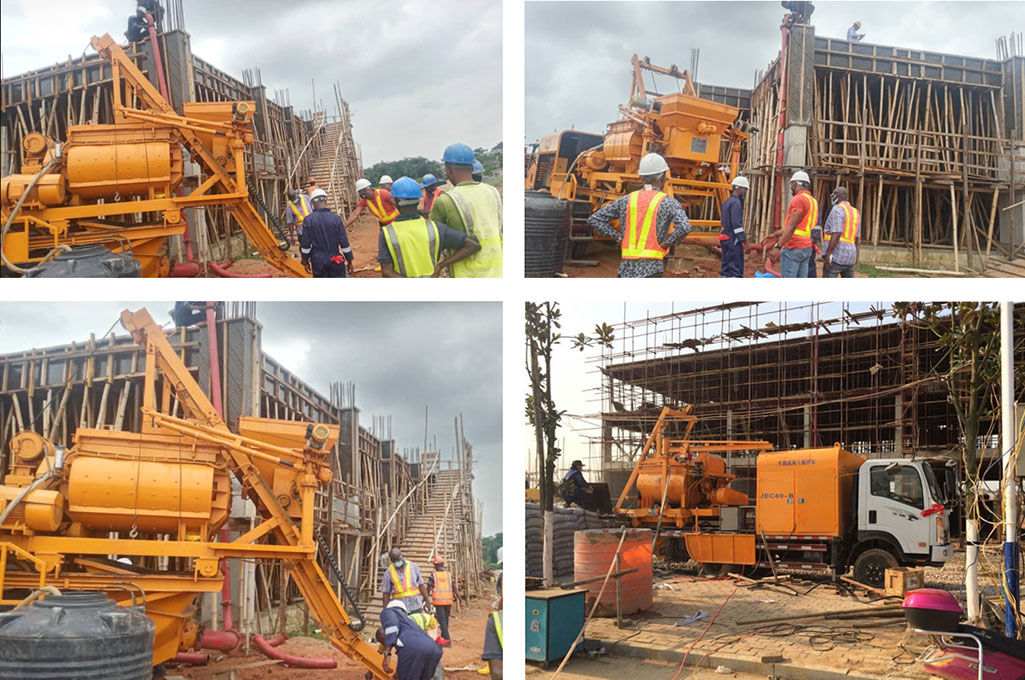

Construction case
